Multi Wall Polycarbonate Sheet

Multi Wall Polycarbonate Sheet

Overview: Multi wall Polycarbonate Sheets have more layers or slanting brace so that they are featured with increased overall loading capacity. These sheets can support greater purlin distances, reduce accessories usage to the maximum, enabling architects to have more freedom in choosing the...

Send InquiryChat Now

Overview:
Multi wall Polycarbonate Sheets have more layers or slanting brace so that they are featured with increased overall loading capacity. These sheets can support greater purlin distances, reduce accessories usage to the maximum, enabling architects to have more freedom in choosing the materials. Meanwhile, the reinforced multilayer structure increases heat preservation and insulation, resulting in a lower U-value compared to twinwall sheet with same thickness. The slanting brace also brings positive effects to the lateral stability of multiwall sheets, making the overall structure more reasonable.

Product Features:
1. Its impact resistance is 30 times as much as the common glasses
2. Multi-layer structure forms the cavity to strengthen the insulating function. It has a lower U value compared with the ordinary panels with same thickness.
3. Its 50-micron meter coating can effectively protect it from ultraviolet rays to avoid aging.

Typical Applications:
1. Workshop/storehouse skylights
2. Walkways/Carports
3. Gymnasiums skylights/Walkways/Carports
4. Natatorium/Green house coverings
5. Indoor partition

Structure

Grade name

Thickness(mm)

Weight (g/m2)

Rib distance(mm)

U-value
 (W/m2 K)

2-wall

R-structure

RGL4-2R09

4

850

6

3.96

RGL6-2R13

6

1300

3.56

RGL8-2R15

8

1500

10

3.26

RGL10-2R17

10

1700

3.02

RGL12-2R19

12

1900

2.78

3-wall

R-structure

RGL6-3R14

6

1500

10

3.02

RGL8-3R16

8

1700

2.92

RGL10-3R18

10

1900

2.68

RGL12-3R21

12

2100

2.60

RGL14-3R24

14

2400

16

2.42

RGL16-3R27

16

2700

2.27

4-wall

R-structure

RGL8-4R18

8

1800

7

2.56

RGL10-4R21

10

2000

2.39

RGL12-4R23

12

2200

2.30

RGL14-4R25

14

2500

10

2.10

RGL16-4R28

16

2800

2.00

RGL18-4R31

18

3100

1.88

RGL20-4R33

20

3300

1.69

3-wall

X-structure

RGL10-3X19

10

1900

16

2.65

RGL12-3X21

12

2100

2.52

RGL16-3X25

16

2500

2.43

RGL20-3X30

20

3000

20

2.27

RGL25-3X34

25

3400

2.16



Company Information:

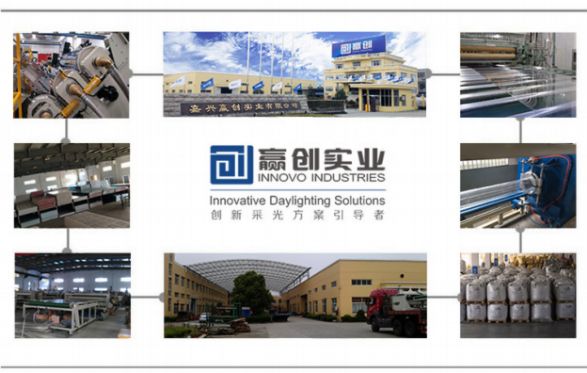

 Covering an area of 20,000 square meters and owning 5 world class Co-extrusion lines, Innovo is one of the leading manufacturers in China. For the past 20 years, Innovo has been devoted to manufacturing polycarbonate sheet, meanwhile manufacturing other thermoplastic sheets and derivative products to cater for the diversified market.






How can become our distributor?

We are interested in cooperating with importers of building and decorative materials. Agents worldwide who have good credibility and extensive sales network will be welcomed.
